When manufacturing parts such as a flange, half-coupling, tube sheet, etc., to make holes located on a circle, it is required to calculate the coordinates of the centers of the circles.
If there are many such holes, then the calculation can take a long time and errors are likely.
In order to speed up the process and eliminate the possibility of errors, an application for calculating coordinates was developed.The application implements many settings.
It is required to enter the diameter of the circle and the number of points.
You can specify the origin axis, the offset angle of the first point to the nearest second, specify the direction of the first point offset.
It is possible to set the direction of counting the numbering of points, change the direction of the axes, change their names.

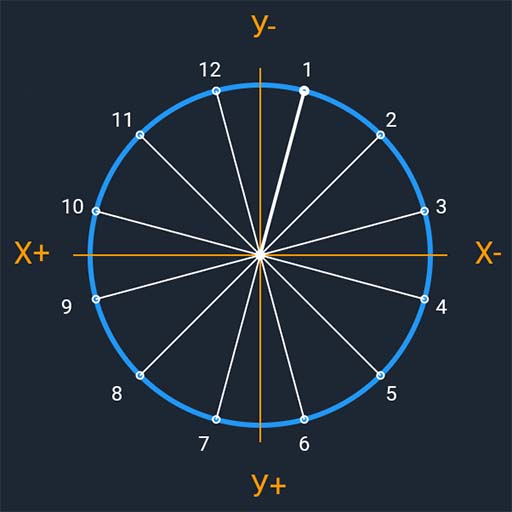

You can also set the origin to the center of the circle, or specify the coordinates of the center relative to the origin.The result of the calculation is a sketch with an image of all points and a table in which the coordinates of each point are indicated.
